Home » Rotary Broaching Tools » Hexagon Broaches » 1/2" Shank Broaches » 11/16″ Hexagon Rotary Broach – 1/2″ Shank
Precision 11/16" hexagon rotary broach by Polygon Solutions for CNC machining of internal hex profiles in aluminum, stainless steel, titanium, and exotic materials.

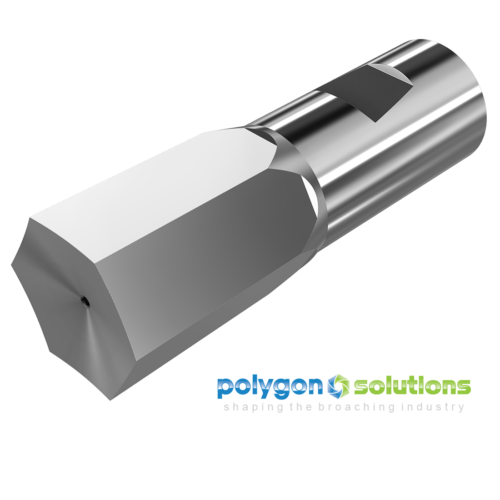

11/16″ Hexagon Rotary Broach – 1/2″ Shank

$121.00

Polygon Solutions' Rotary Broaching Tools are Proudly Made in the USA.

Polygon’s standard 11/16” hexagon rotary broaches are precision-ground for tight tolerances. Nominal sizes meet ASME/ANSI B18.3 Standards for hexagon sockets and include a pressure-relief vent hole to reduce pressure and improve tool life.

  • Nominal Hexagon Size: 11/16″

  • Across Flats: 0.6935″ +0/-.0005″

  • Standard Broaching Depth: 1.00″

  • Pressure Relief Vent Hole Included

  • Broach Dimensions: 1/2″ Shank Diameter x 1-3/4″ Overall Length

  • Custom Sizes, Corner Radius, and Broaching Depth Are Available

HELPFUL LINKS:
Choosing The Correct Broach Material  |  Choosing The Correct Coating  |  Pilot Hole Preparation |  Speeds & Feeds

This 11/16″ Hexagon Rotary Broach Was Design To Be Used With Our
GT Series Half-Inch Shank Rotary Broach Tool Holder

Ask Us A Question

HELPFUL LINKS:
Choosing The Correct Broach Material
Choosing The Correct Coating
Pilot Hole Preparation
Speeds & Feeds

This 11/16″ Hexagon Rotary Broach Was Design To Be Used With Our
GT Series Half-Inch Shank Rotary Broach Tool Holder

Ask Us A Question

Standard M-2 High Speed Steel
PM M-4
( $23.00 )
PM T-15
( $30.00 )
M-42
( $30.00 )
No Coating on Broach
TiN Coating
( $20.00 )
TiCN
( $20.00 )
TiAlN
( $22.00 )
Alcrona Pro
( $25.00 )
ZRN
( $20.00 )
SKU: H06935B Category: Tags: , , , , Brand:

Description

11/16″ Hexagon Rotary Broaching Insert

Polygon Solution’s 11/16″ Hex Rotary Broach cutting tools are designed for superior performance and can be used in any CNC or Manual Mill or Lathe. Polygon recommends pre-drilling the pilot hole 3% oversize for hexagon forms. Pilot holes should also include a chamfer and extra depth for chip accumulation.

Our 11/16″ hexagon rotary broaching tools are precision-engineered and fully customizable to meet your exact application requirements. Custom options include broaching depth, corner radius, and across-flat (A/F) dimensions, allowing for optimized performance and part accuracy. With Same-Day or Next-Day manufacturing available, Polygon Solutions delivers custom tooling without the typical lead times.

  • Recommended Pre-Drill Pilot Hole Size: 0.715″ -0/+.001″

  • Recommended Minimum Lead-In Chamfer Size: 0.805″

  • Recommended Pre-Drill Pilot Hole Size: 0.715″ -0/+.001″

  • Recommended Minimum Lead-In Chamfer Size: 0.805″

FORM ALIGNMENT:
When rotational orientation of the broached form must be synchronized with an existing feature on the workpiece, Polygon Solutions’ Rotary Broaching Alignment Brake Attachment provides precise angular positioning. The alignment brake temporarily restricts free rotation of the tool holder during setup, allowing the broach profile to be accurately indexed relative to keyways, cross holes, flats, slots, or other critical part features. This accessory simplifies setup, improves repeatability, and ensures consistent form orientation from part to part.

HELPFUL LINKS:
Choosing The Correct Broach Material  |  Choosing The Correct Coating  |  Pilot Hole Preparation |  Speeds & Feeds

Premium Rotary Broach Tool Holder This 11/16″ Hexagon Rotary Broach Was Designed To Be Used With Our
GT Series Half-Inch Shank Rotary Broach Tool Holder

Hexagon GO/NOGO gage set for inspecting internal hexagonal featuresUse Polygon Solutions’ 11/16″ Hexagon Gage Set to ensure the accuracy of your machined parts:
11/16″ Hexagon Go/NoGo Plug Gage Set

Available 11/16″ Hex Broach Material Options: M-2, PM M-4, PM T-15, and M-42

Available 11/16″ Hex Broach Coating Options: TiN, TiCN, TiAlN, ZRN, AlCrN (Alcrona Pro)

11/16″ Hex Rotary Broach Cross Reference Part Numbers: 506-694, HX2-11/16-F

HELPFUL LINKS:
Choosing The Correct Broach Material
Choosing The Correct Coating
Pilot Hole Preparation
Speeds & Feeds

Internal Premium Rotary Broach Tool Holder by Polygon Solutions
This 11/16″ Hexagon Rotary Broach Was Designed To Be Used With Our
GT Series Half-Inch Shank Rotary Broach Tool Holder

Precision hexagon GO and NOGO plug gage set for dimensional inspectionUse Polygon Solutions’ 11/16″ Hexagon Gage Set to ensure the accuracy of your machined parts:
11/16″ Hexagon Go/NoGo Plug Gage Set

Available 11/16″ Hex Broach Material Options:
M-2, PM M-4, PM T-15, and M-42

Available 11/16″ Hex Broach Coating Options:
TiN, TiCN, TiAlN, ZRN, and AlCrN (Alcrona Pro)

11/16″ Hex Rotary Broach Cross Reference Part Numbers:
506-694, HX2-11/16-F
