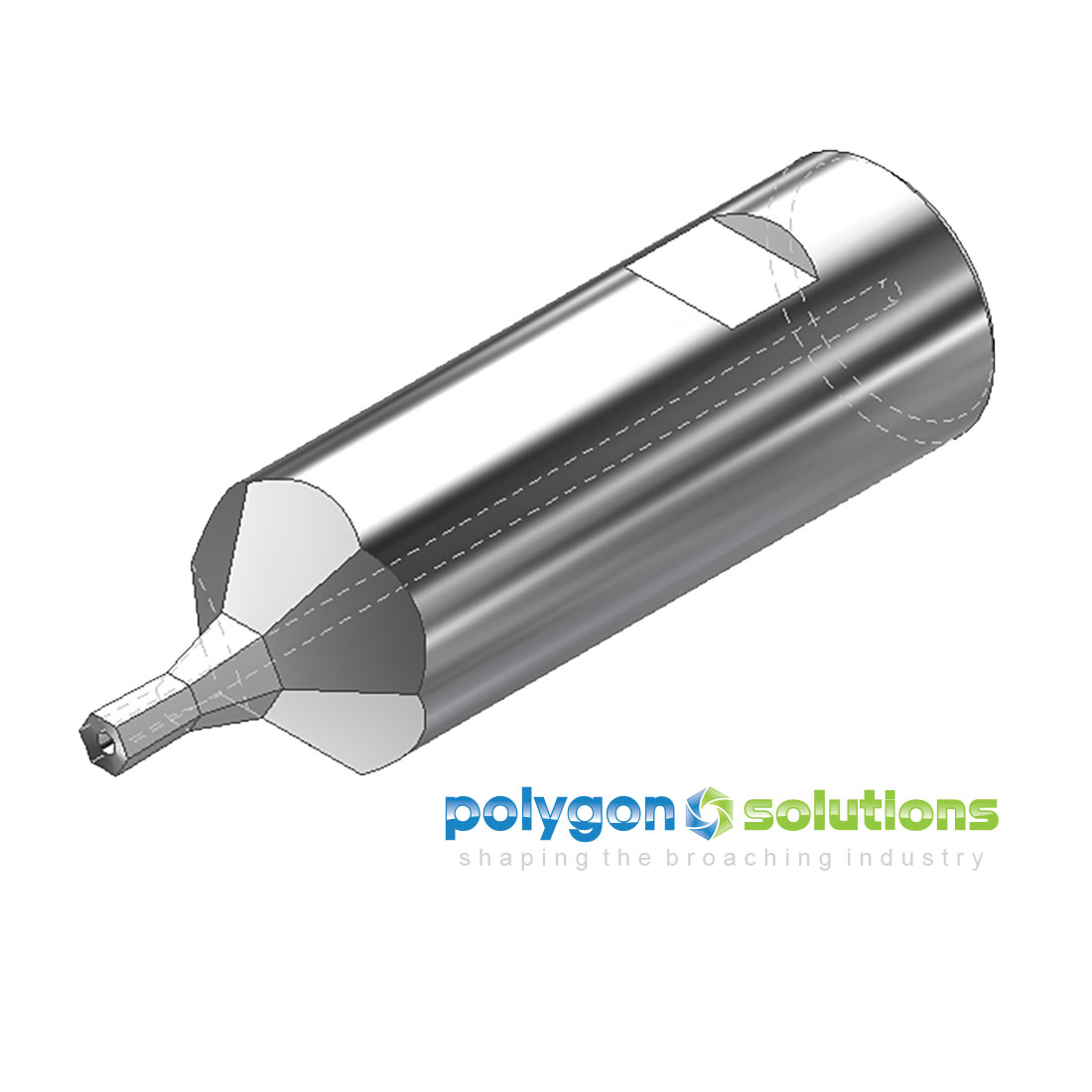

3/32″ Hexagon Rotary Broach – 1/2″ Shank

FORM ALIGNMENT:
When rotational orientation of the broached form must be synchronized with an existing feature on the workpiece, Polygon Solutions’ Rotary Broaching Alignment Brake Attachment provides precise angular positioning. The alignment brake temporarily restricts free rotation of the tool holder during setup, allowing the broach profile to be accurately indexed relative to keyways, cross holes, flats, slots, or other critical part features. This accessory simplifies setup, improves repeatability, and ensures consistent form orientation from part to part.

HELPFUL LINKS:
Choosing The Correct Broach Material  |  Choosing The Correct Coating  |  Pilot Hole Preparation |  Speeds & Feeds

This 3/32″ Hexagon Rorary Broach Was Design To Be Used With Our

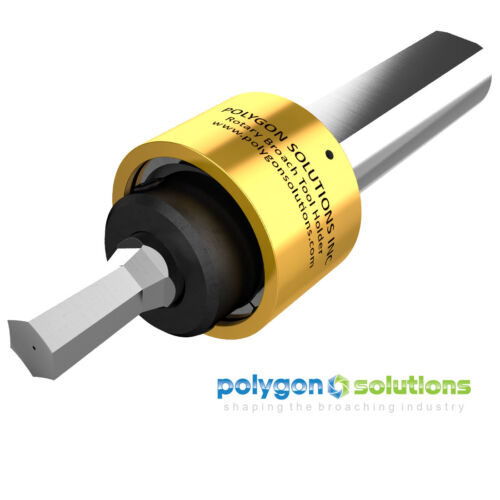

GT Series Half-Inch Shank Rotary Broach Tool Holder

Use Polygon Solutions’ 3/32″ Hexagon Gage Set to ensure the accuracy of your machined parts:

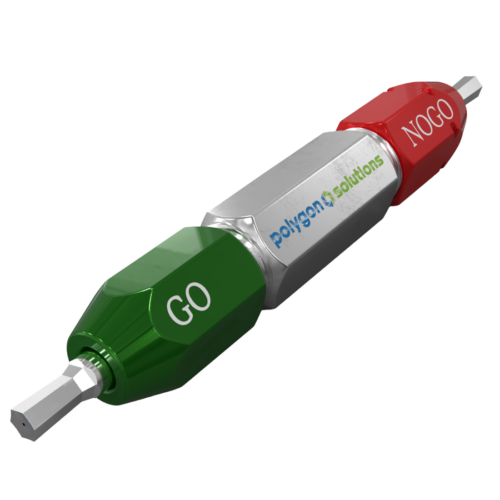

3/32″ Hexagon Go/NoGo Plug Gage Set

Available 3/32″ Hex Broach Material Options: M-2, PM M-4, PM T-15, M-42, PS-30, and PS-60

Available 3/32″ Hex Broach Coating Options: TiN, TiCN, TiAlN, ZRN, AlCrN (Alcrona Pro)

3/32″ Hex Rotary Broach Cross Reference Part Numbers: 506-095, HX2-3/32-F, 02793644, 66106
